CIMCO MDC-Max 5

CIMCO MDC-Max is a real-time software machine tool data collection system that gives you instant reports and charts about your shop floor productivity. MDC-Max makes your decisions easy as they will be based on accurate data collected from your machine tools.

In today's complex and competitive global markets, it is more important than ever to maximize effective use of manufacturing equipment.

MDC-Max provides powerful machine data collection and analysis capabilities to make this task easier and gives you real time reports including Overall Equipment Effectiveness (OEE).

All of this can be achieved without the need to place PC’s beside the machine tools - all the data can be collected by cable, wireless or ethernet (network) and is stored centrally even if you have multiple workshops to monitor.

MDC-Max 5 integrates with the latest version of the most trusted CNC-Communication software on the market - CIMCO DNC-Max 5.

MDC-Max provides powerful machine monitoring, data collection and analysis capabilities.

A truly integrated solution

MDC-Max is fully integrated with DNC-Max and NC-Base giving you a complete DNC, document gathering and Machine Data Collection system from one supplier.

CIMCO MDC-Max
MDC-Max is the software which is responsible for collecting all the machine tool data for in cycle and number of parts produced.

CIMCO DNC-Max
DNC-Max controls the sending and receiving of CNC programs to your range of machine tools. Programs can be requested from the machine control thus avoiding the operator having to leave his machine. Any program changed by the operator and sent back to DNC-Max can be automatically raised in version or stored in a quarantine area. This gives you the ability to track changes and revert back to any previous version if necessary.

CIMCO NC-Base
The data collected by MDC-Max can be analysed immediately by the NC-Base module to produce graphs and charts showing you exactly what is happening with your production schedules. NC-Base also allows you to store any documents related to a particular job. These can be drawings, photographs of machine setups, tool lists, operation sheets, CNC programs etc. This makes finding any information about a particular job extremely easy.

Reports and Graphs

With over 100 available report templates you can easily display your data to enable you to explore down to the appropriate level to see exactly what is happening with your production schedules.

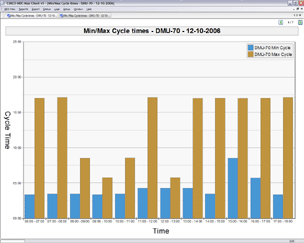

Cycle Time per Part (min, max and average)
Number of parts per shift / operator
Number of scrapped parts
Machine downtime
Scheduled Maintenance
Unscheduled maintenance
Setup Time per part
Operator effectiveness
Overall Equipment Effectiveness (OEE)

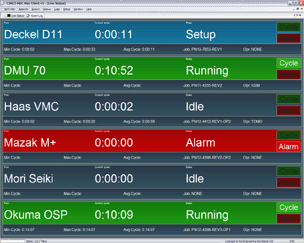

Realtime Machine Display (see which machines are running at a glance)

Produce reports to see how much production time has been lost due to waiting for tooling etc.

Additional features

SMS Messaging
Out of the factory - no problem! When a machine has a breakdown you will be notified immediately by text message delivered automatically to your mobile phone. At the same time the text can be sent to a machine setter or maintenance engineer so the problem can be dealt with immediately. You will be back into production quicker and meet those tight delivery schedules.

Windows Integration
Integration with Windows Server 2003 and Microsoft SQL database technology

Hand-held support
Hand-held PocketPC client to check machine status via wireless anywhere on the shop.

Complete Monitoring
Monitor your machines from any PC connected to your network.
Monitor machines in a remote shop via WAN or VPN technology.
Monitor machines via the internet and a web browser.

Lights Out Monitoring
The latest software also includes full “Lights Out Machine Monitoring”

Pager & text messages
Run your machines unattended and get a pager or text message when a machine stops.

View data from anywhere
View the machine status over the internet from home or off-site.

View camera feeds
Connect to shop-floor cameras via the internet to see if an operator or engineer is needed to fix the problem.

Download brochure

Download CIMCO MDC-Max Brochure (1.5mb)
